ADDITIONAL INFORMATION

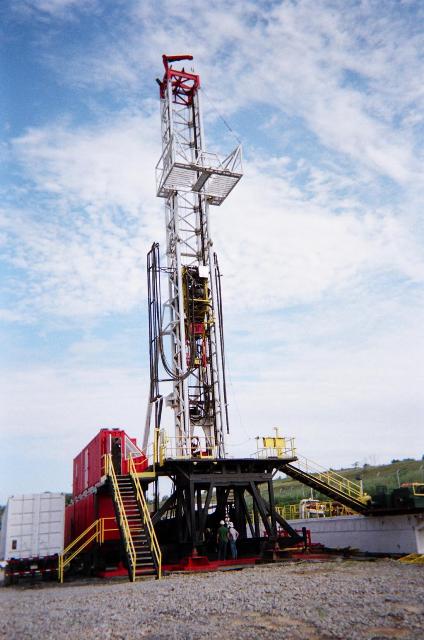

Custom built (USA) 1100HP top drive, fully computerized double hydraulic rig, capable of drilling up to 14,000’ with 4 ½” drill pipe. Late model, 4G certified, built for purpose, small footprint, rapid mobilization- from arrival of first load at location to commencement of drilling is less than two days. The rig has drilled 3 wells and is like new.
RIG FEATURES:
480,000# PULLBACK
1100 HP Rig Power: (2) 515hp Cat C15 engines
480,000# holdback capacity
80,000# pulldown capacity
35,000 ft/lb top drive rotary torque
65’ x 40’ drill footprint
SPECIFICATIONS:
Mast:
500,000# mast, 98’ H x 8’ W x 7’ D
Substructure: 16’ high hydraulic leveling, self-supporting (no guide wires) mechanical outriggers(2) winches 17K; 6K
Laydown line
Topdrive Carriage:
480,000# holdback capacity
80,000# pulldown capacity
35,000 ft/lb top drive rotary torque
4” kelly lineHydraulic bail extension/retraction
Mounted backup clamp and guide bell
Work platform for maintenance
Computer controlled lighting system
Control System:
Full computer based control system
Capability of accurately controlling bit weight, ROP, rotary speed, rotary torque, auxiliary functions
Fault Management
Touch screen interface
Remote monitoring capabilities via internet
Self-reporting diagnostics
Automatic mitigation of fault conditions with minimal loss of functionality
Full WITS Communication
Mud System:
(1) 600 kw generator sets
Pits (like new):
(1) 62’ x 11’6” x 7 – 500 bbl mud shaker tank with (3) partitions
(2) 5” x 6” centrifugal pumps p/b 75 hp electric motors
(1) 55’ x 11’6” x 7 – 300 bbl mud suction tank with
(3) partitions (2) 5” x 6” centrifugal pumps p/b 75 hp electric motors 800 bbl mud system
Bop Stack:
Double ram: 13 5/8” x 5,000 psi
Annular: 13 5/8” x 5,000# psi
Accumulator: Koomey type 80 6-station, 210 gallon accumulatorRotating Head: Washington 1500 psi, 16”
Choke Manifold 5,000 psi 4-1/16” x 2” and (2) 2-1/16” adjustable chokes
Gas Separator: 10” flanged flow line, 4” flare line
Accessories/Pipe Handling Equipment:
7,000# jib crane, winch boom, rotate
17,000# main winchRacking board (racks 11,880’ of 4-1/2” doubles, folds for transport
Quick Change Hydraulic Power Slips
Adjustable Height Tong Pulling System with Torque Limiting
Power Tongs: Varco SSW30 and 13-3/4” D & D Power tongsCatwalk: 42’ x 8’ x 42” with walkway4 kw rig lighting system
Особенности товара
| Quantity | 1 |
| Manufacturer | Custom |
| Model | 1100 HP |
| SKU | 4 |
| Location | United States |
| Price | Call for Price |
