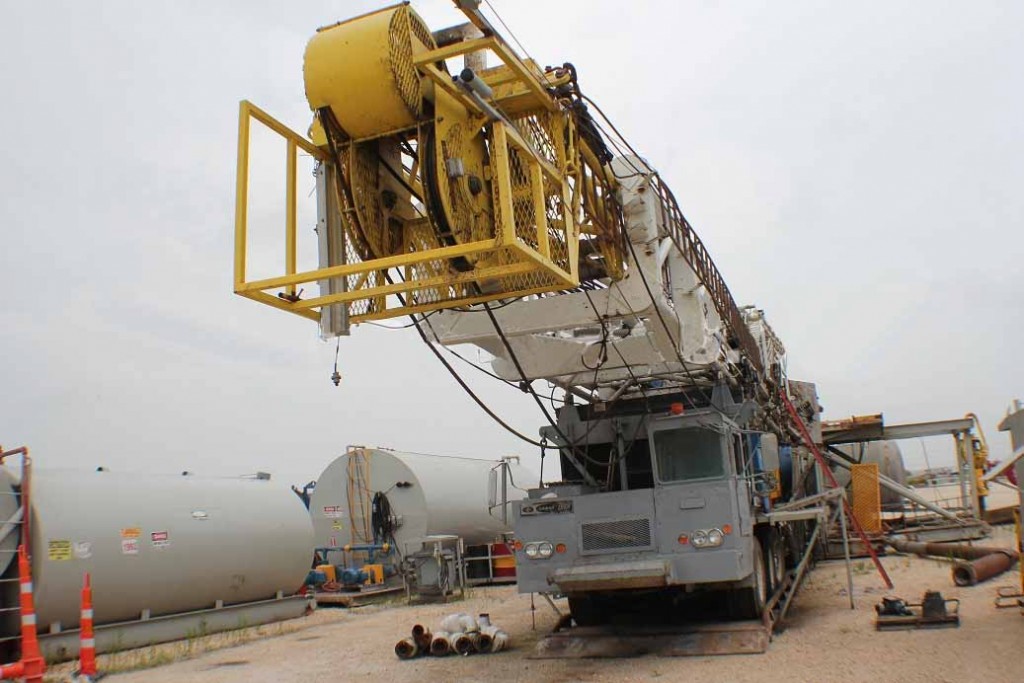

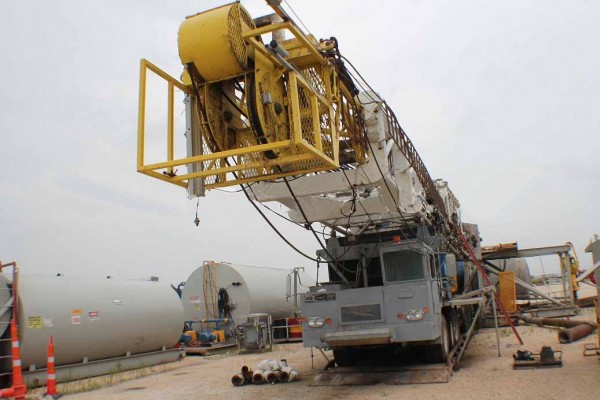

CABOT 750HP DRILLING RIG

Описание товара

ADDITIONAL INFORMATION

Cabot 750 Drilling Rig
Classification
750 HP Trailer Mechanical
Drilling Depth Capacity
9,500 W/ 4-1/2″ dp
Power System
Two (2) 60 Series Detroit Diesels with Allison 5860 transmissions and
Two (2) CAT C-15 diesel engines with SR4B generators
Draw Works
Cabot Model 750 with Parkersburg 22″ single hydromatic brake and two (2) engine compound
Mast
Double telescoping 112 feet mast rated to 300,000# SHL
Drill Line
1-1/8″
Substructure
Cabot 15′ telescoping with 350,000 lbs rotary capacity with a setback capacity of 200 000#
I I
12 clear height from rotary beam to ground
Mud Pumps
Two (2) Bomco F-1000 each driven by
One (1) CAT D-399
Rotary
IDECO 275-K
Block and Hook McKissick 150 Ton Block Web Wilson 150 Ton Hook
Swivel
IDECO TL 200
Drill Pipe
4-1/2″ od 7,500′ 16.60 PPF
Drill Collars
Eighteen (18) 6″
Two (2) 8″
Annular Preventer
11″ 5000 psi WP
Ram Preventers
11″ 5000 psi WP double ram
Choke Manifold
4-1/16″ x 2-1/16″ 5000 psi WP
Accumulator System
Koomey Type 80 with 5 station and remote 120
gal.
Mud System
Two (2) Tank 630 BBL System
Dual (2) Derrick 503 Shakers Derrick 2 cone desander Derrick 8 cone desilter
Drilco Degasser
Auxiliary Equipment Toolpusher and crew quarters 500 bbls water tank
Automatic driller
Pipe spinner Kelly spinner
8,000 gal Diesel Tank
