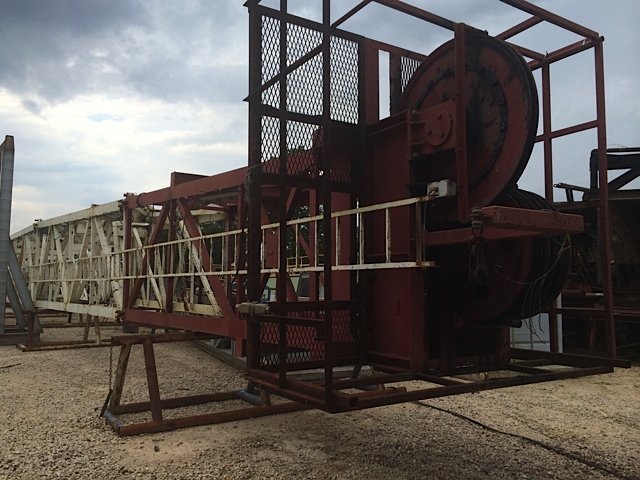

GARDNER DENVER 500 DRILLING RIG

Описание товара

Drawworks :
Gardner – Denver model DW – 500 drawworks.
Main drum grooved for 1 – 1/8″ drill line and
powered by two (2) Caterpillar model C – 15
industrial engines.

Mast :
Superior derrick services 136′ – 0″ clear height,
18′ – 6″ base, 600,000 lb. GNC 428,000 lb.
Static hook load mast with crown cluster consisting
of six (6) 42″ Dia. sheaves and one (1) 55″ dia.
Fastline sheave, all grooved for 1 – 1/8″ wireline.

Substructure :
15 foot. box – on – box conventional substructure
with 450000 lb rotary capacity, 300,000 lb set back
capacity and 750,000 lb simultaneous rotary and
setback load.
