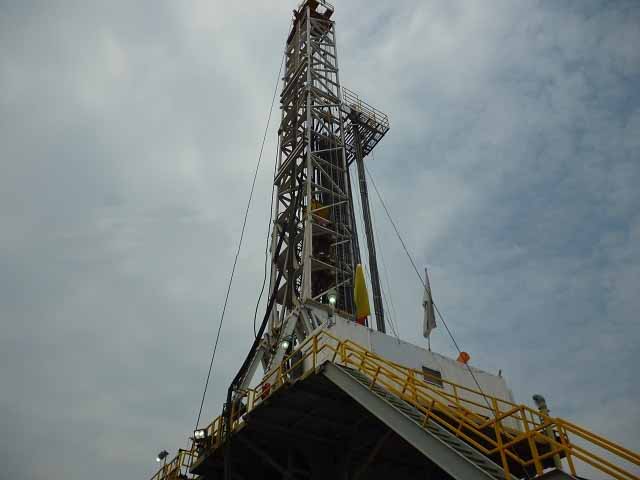

NATIONAL 110-UE 1500HP ELECTRIC WALKING DRILLING RIG

Описание товара

Classification
1500 hp Electric
Racking Capacity
18,000’
Power System
Three (3) Caterpillar 3512B/1225 generator sets One (1) IEC SCR model I-Drive
Drawworks
National 110-UE with Wichita 2-36 KKB Disc brake powered by two (2) GE 752 traction motors
Mast
DSI 147′ Mast rated at 1,000,000 SHL 12 part line
Drill Line
1-3/8” EIPS
Substructure
DSI 30′ high self-elevating substructure with 25′ clear height under beams with simultaneous rotary capacity of 1,000,000 lb with 800,000 lb setback
Mud Pumps
Three (3) Bomco 1600 pumps each driven by Two (2) GE 752 traction motors
Rotary
NOI 27-1/2” powered by One (1) GE 752 traction motor
Top Drive
NOV-TDS11 SA 500 ton
Block and Hook
One (1) McKissick 550 ton block 6-60″ sheaves
Drill Pipe
5″ od 19.50 ppf S-135 NC 50
Annular Preventer
13-5/8” 5,000 psi wp with 10,000# flange
Ram Preventers
13-5/8″ 10,000 psi wp double ram 13-5/8″ 10,000 psi wp single ram
Choke Manifold
4-1/16″ x 3 1/16″ 10,000 psi wp
Accumulator System
200 gal six (6) station with remote control
Mud System
Three (3) Tank 1000 bbl System Three (3) Derrick 513 HG shakers One (1) 3 in 1 mud cleaner Tri-Flo Vacuum Degasser
Auxillary Equipment
One (1) 500 bbl water tank Two (2) 12,000 gal fuel tank NOV- Iron Roughneck type ST-80 C One (1) .092 Wireline unit Forum Pipe Wrangler
