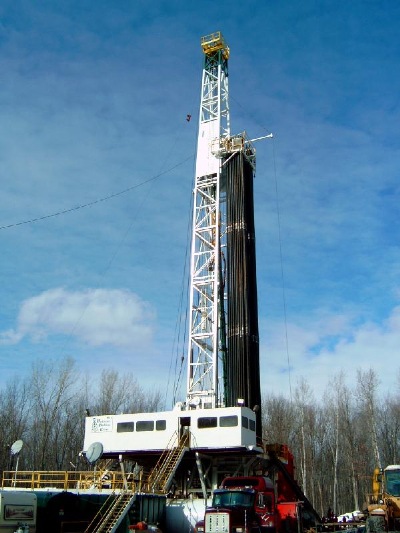

OIME SL-5 LAND RIG

Описание товара

Drawworks: OIME SL-5 with two engine compound, powered by (2) 550HP series 60 Detroit Diesel Engines, WPT 3-24 water cooled aux. brake

Mast: Parco 131’ 550,000# static hook load, 6 sheave crown block

Substructure: Parco 18.5’ split level, 467,000# rotary load, 357,000# simultaneous set back

Dog House: 10’ by 40’ skidded with electric panel, lockers, and knowledge box
8′ by 40′ skidded with tool room & wire line unit

Mud Pumps: #1 QZ9 1000HP Triplex, powered by Cat 398 #2 QZ9 1000HP Triplex, powered by Cat 398

Mud system: 2 pit (940bbl) system with two 6×8 cent. pumps with 75HP electric motors, 4 Brandt electric mixers, 12 cone de-silter, 2 cone de-sander, Smico 22 sq ft shale shaker

Instrumentation: MD 500,000# wt. ind.– tong, torque – pump pressure gauges, satellite internet system, Pason EDR (electronic drilling recorder) w/interenet access available

Rotary Epuipment: Twister 27 1/2″

Traveling: 250 ton Block-Hook, 250 ton Swivel, 5 ¼ hex kelly

Electrical: (2) 350KW generators powered by series 60 Detroit Diesel engines,
Mounted in 10’ wide by 40’ long house, with electric panel and 150KVA Transformer

BOPs/Well Control Equipment: 13 5/8″ 10,000 # double SL type, 13 5/8 ” 5000# Annular, Valvecon 120 gallon, 5 station accumulator – mounted in generator house, 4″ 10,000# choke manifold, 4 ft X 19 ft gas separator, buster, and burner

Auxiliary Equipment: 1 Hydraulic winch, (2) 5 ton Air Tuggers, air kelly spinner, air pipe spinner, Varco hydraulic catworks, hydraulic power unit with 50 HP electric motor, (4) air compressors (2) electric, (2) on compound

Drill String: 4 1/2″ 16.6# X-95 drill pipe (10,000 ft), 4 1/2″ 16.6# G-105 (3,000 ft), 18 4 1/2″ 42# HW drill pipe, (18) 6 1/4″ drill collars, (7) 9″ drill collars

Location Size: Optimum 350′ X 350′, Minimum 260′ X 150′

Особенности товара

Quantity 1
Manufacturer OIME
Model SL5
SKU 5
Location United States
Price Contact for pricing
