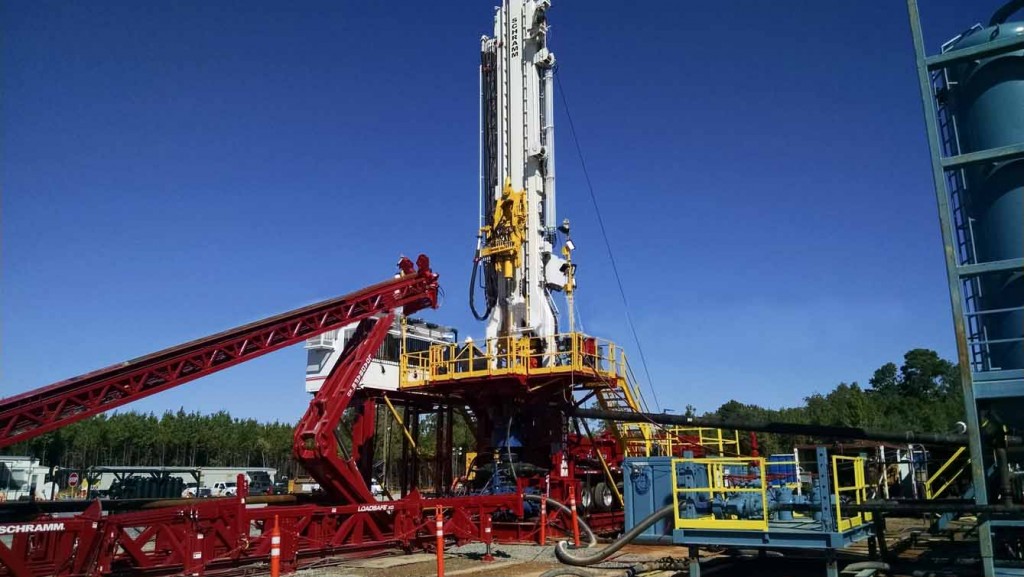

SCHRAMM T250XD 760HP DRILLING RIG

Описание товара

• Date of Manufacture: April 15, 2014
• Fast Moving Highly Mobile Rig
• Complete with backyard
• Only Drilled 17 Wells
• Up to 250,000 lb. (113,398 kg) hook load
• Up to 32,000 lbf. pulldown capacity
• Range III tubular capacity
• LoadSafe XD automated pipe handling to 10,000 lbs
• Automated rig floor and drilling controls
• Automated onboard and remote diagnostics

In Service Date: October 2014

Maintenance & Certificate Records: Available

 Climate Controlled Drillers Cabin: Joy stock controls electronic/hydraulic

 13 ½ FT Working Under Floor Area
 2 – D379 Caterpillar Pumps
 400 bbl Shaker Tank: In Service Date: February 2014
 400 bbl Suction Tank: In Service Date: February 2014
 MZ-9 Triplex #1 Pump
 MZ-9 Triplex #2 Pump
 500 bbl Water Tank
 Ruff Dual Shaker System: In Service Date: February 2014
 12 Station Closing Unit Air/Hydraulic: In Service Date: February 2014
 8,000 Gallon Fuel Tank
 5K Choke Manifold
 5K Shaffer Style Hydril and Double Ram Preventer: In Service Date: February 2014
 2 Cone Desander and 12 Cone Desilter: In Service Date: February 2014
 Electric Manifolds
 Parts House and Pump Motor Mufflers
 Matting System and Duck Pond
 15- Joints 4 ½ inch XH Heavy Weight with 15 6 ½ inch DC Drill Collars with 3- 8 inch DC (new in October 2014)
 10K FT 4 ½ XHole Drill Pipe
 Flow Line
 2- Hose Rack
 Dolly Attachment for Trailer

DECK ENGINE
· MTU 12V-2000TA DDEC
· 760 bhp (567 kw) @ 1800 rpm
· 1 x 110 gallon (415 l) fuel tank
COOLING
· Two core, side by side heat exchanger with 56 inch (142 cm) diameter
variable speed cooling fan
· 130°F (54°C) ambient design temperature
MAST
· Telescoping mast design permits long head travel and working height,
yet short overall length in transport position. No crane required for rig up
· Total height to top of crown fully extended 94 ft (28.65 m)
· Free-standing mast design
TILTING TOP HEAD DRIVE
· Heavy duty, single reduction gearbox with 4 two-speed disc valve type
hydraulic motors
· Infi nitely variable rotation speed via HRC control
· Torque: 0-120 rpm @ 19,944 ft-lb (27,040 N-m). 0-182 rpm @
13,300 ft-lb (18,032 N-m)
· Fluid line pressure: 5,000 psi (345 bar)
FEED SYSTEM
· 56 ft (17 m) head travel
· 250,000 lbf (1,112 kN) pullback
· Up to 106 fpm
· 32,000 lbf (142 kN) pulldown
· 200 fpm (61 m/min) pulldown speed
DRILL TABLE
· Table opening: 27.5 inches (687 mm) diameter with table retracted
· Number 1, 2 & 3 API split bowls provided
· BOP clearance under the fl oor: 13.5 ft (4.1 m)
HYDRAULIC ROUGHNECK
· Clamping range: 4.5 – 9.625 inch (11.43-24.45 cm) diameter
· Clamping force: Adjustable up to 61,500 lbs @ 3,000 psi (273 kn
@ 208 bar)
· Make/break Torque: 60,000 ft-lb @ 3,500 psi (81,349 N-m @ 241 bar)
LOADSAFE®
XD AUTOMATED PIPE HANDLING SYSTEM
· Built-in holding clamps with variable capacity from 4 – 24 inch (10 – 61
cm) allow for make-up or break-out of tool joints from top drive spindle
· Capacity: Range III
· Maximum lift capacity: 10,000 lbs (4,536 kg)
· Average trip time: 1,250 f/h (381 m/h)
CONTROL ROOM
· Skid mounted, raised into position using a cantilever system via
hydraulic lift cylinders
· Two joystick control stations with touchscreen displays, including drill
rig operator and LoadSafe XD pipe handling system operator
· Onboard and remote diagnostics, including provision for third party
remote data communication interface
· Safety hardened, climate controlled 10 x 15 ft (3 x 4.6 m) enclosure
SUB-BASE
· Integral sub-base provides a stable mounting surface for the T250XD
Telemast trailer
· Floor height: 15 ft (4.57 m)
· Working clearance under fl oor: 13.5 ft (4.11 m) – 5.0 m optional
· Working diameter under fl oor: 54.5 inches (1.38 m) to accommodate
54 inch (1.37 m) annular
WINCH
· Planetary design with spring applied hydraulic release brake
· 9,600 lbf (42.7 kN) bare drum line pull
· 150 fpm (46 m/min) bare drum line speed
· Hydraulic jib boom with 140° swing and 40 inch (1.02 m) extend
· Aux winch and jib boom 3,000 lbs (1,363 kg)
HYDRAULIC SYSTEM
· Open loop load sensing system
· 7 micron fi ltration
ELECTRICAL SYSTEM
· 24 volt DC electrical system
· Designed to API 505 standards in hazardous location areas
WEIGHT AND DIMENSIONS (*)
Note: Primary loads, for general illustration only, varies with rig confi guration
· Control room skid: 40’ L x 9’8’ W x 10’6” H @ 50,000 lbs,
(12.2 x 2.97 x 3.2 m @ 22,680 kg)
· LoadSafe XD: 53’ L x 8’6” W x 6’ H @ 44,000 lbs,
(16.2 x 2.6 x 1.83 m @ 19,958 kg)
· Sub-base: 40’2” L x 10’ W x 10’6” H @ 60,000 lbs,
(12.2 x 3.05 x 3.2 m @ 27,216 kg)
· Mast trailer less tag dolly: 54’8” L x 8’6” W x 13’6” H @
100,000 lbs, (16.7 x 2.6 x 4.1 m @ 45,359 kg)
